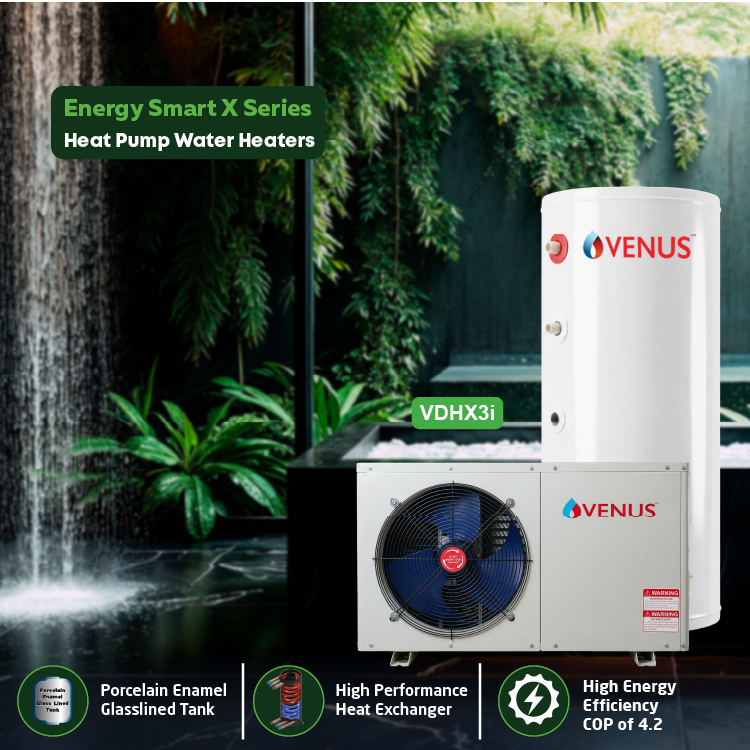

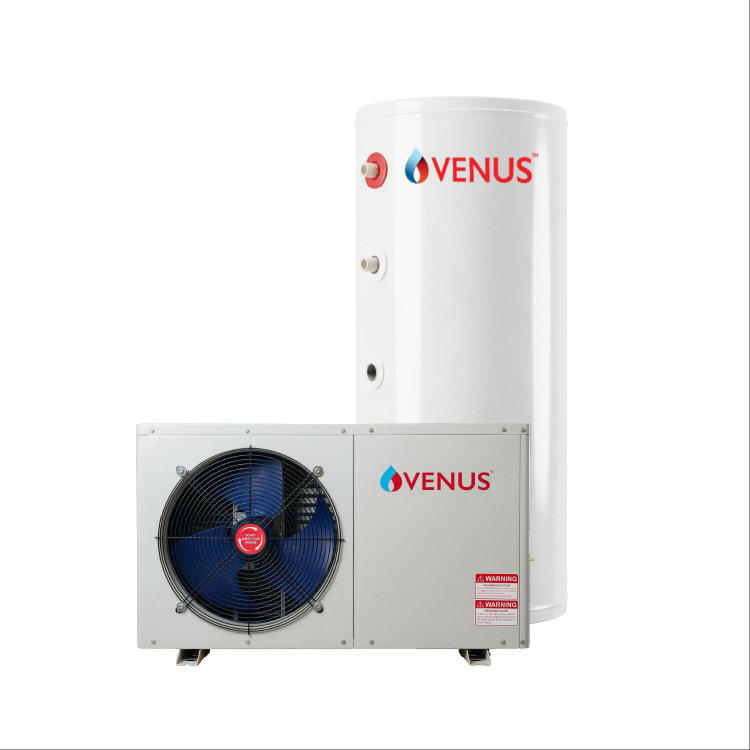

Energy Smart X-Series Heat Pump

Name: Energy Smart X-Series Heat Pump
Brand: Venus Home Appliances

Venus introduces Heat Pump Water Heaters for the first time in India. Using renewable energy heat sources from the ambient air to heat water, these heaters can provide hot water round-the-clock and throughout the year in an energy-efficient and affordable way. Venus Heat Pump Water Heaters are the right solution for domestic hot water applications.

Compare Product

List item 1
List item 2
List item 3

Applications

Overview Unique Features Specifications FAQ Video Download Catalogue Reviews

Overview

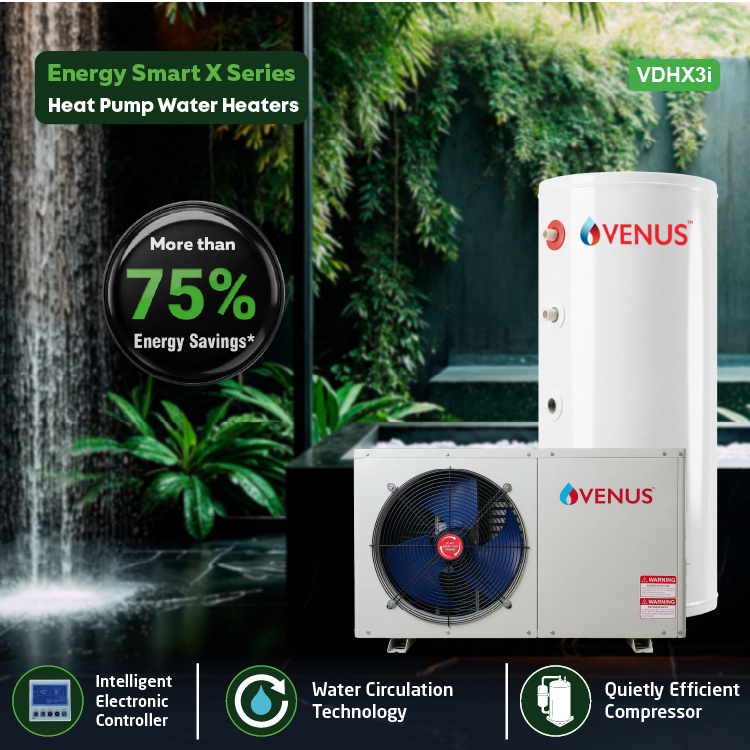

Get non-stop hot water anywhere in the house while saving as much as 75-80% on your heating costs.
A solitary heat pump installed anywhere in the house can supply hot water to all the bathrooms and kitchens.

Applications

HOW DOES A HEAT PUMP WORK

Absorption of Heat from Surrounding Air: The Venus heat pump utilizes the principle of absorbing heat from the ambient air surrounding it. Even in cold weather, there is heat energy present in the air which the heat pump extracts.
Refrigerant Circulation : The heat pump contains a refrigerant that has a low boiling point. When the refrigerant is in contact with the warm air, it absorbs heat and turns into a gas.
Compression of Refrigerant: : The gas refrigerant is then compressed using a compressor. As the gas is compressed, its temperature rises significantly.
Heat Exchange: The now hot compressed gas passes through a condenser where it releases its heat to the water in the system. This heat transfer warms up the water, which is then ready for use.
Expansion Valve: After releasing its heat, the refrigerant is passed through an expansion valve. This valve reduces the pressure of the refrigerant, causing it to cool down and revert to its liquid state.
Evaporation: The cooled liquid refrigerant then passes through an evaporator where it absorbs heat from the surrounding air, starting the cycle anew.
Continuous Cycle: This process continues in a cycle as long as the heat pump is operational, continuously extracting heat from the air and transferring it to the water.
Efficiency Enhancement: Venus heat pumps are designed to enhance efficiency through various means such as advanced compressor technology, optimized heat exchangers, and intelligent controls. This ensures maximum heat extraction from the air with minimal energy consumption
Backup Heating : In colder climates or during periods of high demand, Venus heat pumps may also have backup heating elements to ensure consistent hot water availability.

KEY FEATURES

Glasslined Double Ceramic Heating Elements:

Glasslined Double Ceramic Heating Elements with Scale Guard Technology.

Split system for flexible installation

It consists of external and internal units for installation.

3cm Thick Polyurethane Foam (PUF)Insulation

Reduces heat loss and keeps water hot for much longer longer

Double side enameling:

Prevents rusting of flange and door plate.

High Energy Efficiency - COP of 4.2:

Utilizes as low as 0.83 / 1.19 / 1.79 kW input; delivers heat output up to 3.5 / 5.0 / 7.5 kW COP of 4.2

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

Low operating cost - more savings:

More savings as the operating costs are low.

coaxial heat exchanger

Excellent pressure resistance ideal for high-pressure refrigerants.

Circulation Pump:

The circulation pump circulates hot water from the storage tank to the heat pump to enable heat transfer.

Smart Investment. Real Savings.

Switching to a heat pump water heater can reduce running costs dramatically, helping you recover your investment through lower energy bills while enjoying consistent hot water all year. Save Up to 75% on Your Energy Bills.

Try Our Calculator

Heat Pump Savings & ROI Calculator

Enter your daily usage, electricity tariff, and heater size to see how many units you’ll consume, how much you’ll save every month, and your estimated return on investment.

Try Our Calculator

Unique Features

HOW DOES A HEAT PUMP WORK

Major components of a heat pump water heater include a compressor, refrigerant, two heat exchangers (a condenser and an evaporator), and an expansion valve.

Working Principle

The operation begins with air being forced through an evaporator, which contains a liquid refrigerant, with the help of a fan.
This refrigerant evaporates into a gas and extracts heat from the ambient air.
The warm gaseous refrigerant then passes through the compressor, which increases its pressure and converts it into a hot gas.
This hot gas enters a heat exchanger (condenser) and transfers its heat to the water inside a storage tank.
The refrigerant cools down in the condenser and becomes a warm liquid.
It then passes through an expansion valve, where it becomes a cool liquid and enters the evaporator again.
The cycle is then repeated continuously.
Hot-water recirculation using a pump and controller ensures instant hot water at fixtures by continuously circulating water through the pipes, reducing wait time and conserving water.

Specifications

Vertical

Description		VDHX3i	VDHX5i	VDHX8i
Rated Heating Capacity	kW	3.5	5.0	7.5
Rated Heating Capacity	BTU/h	11,940	17,060	25,590
Rated Hot Water Output	Inlet Water Temp. 15°C	75	125	185
	Inlet Water Temp. 20°C	85	142	142
	Inlet Water Temp. 25°C	100	145	215
	Inlet Water Temp. 30°C	120	172	260
Rated Heating power input(kW)		0.83	1.19	1.79
Operating Current(A)		3.8	5.4	8.2
Power Supply(V/PH/Hz)		220~240V/ 1Ph / 50~60Hz
COP(W/W)		4.2
Rated output water temperature(°C)		55
Max outlet water temp(°C)		80 (Heat pump + Electric Heater)
Compressor type		Rotary x1
Water side heat exchanger(Type)		Tube-Tube
Dimensions (A x B x C)(mm)		936 x 385 x 550	936 x 385 x 550
Noise Level(dB(A))		≤43	≤48	≤52
Fan Discharging(Type)		Horizontal
Ambient temperature(°C)		-7 to 43
Refrigerant(Type)		R410A
Water Connection		3/4"
Cabinet		Powder Coated
Suggested Water tank		100-300	500	1000
Suggested Water tank	Inner Tank	Porcelain Enamel Glass Lined Tank
Net Weight(kg)		40	45	54
Gross Weight(kg)		45	50	60
Guarantee (Heat Pump)		2 years
Guarantee (Compressor)		5 years

		D	E	D	E	D	E
Tank Dimension	100 Lts	510	1000	-	-	-	-
	200 Lts	560	1385	-	-	-	-
	300 Lts	650	1520	-	-	-	-
	500 Lts	-	-	710	2000	-	-

Testing condition - Heating: Ambient temp. (DB/WB): 20°C/15°C, water temp. (input/output): 15°C/55°C.
* Conditions apply. * Specifications subject to change without prior notice.

Product Dimensional Drawing

FAQ

Any Question? Can We Help You.

The All-in-One or Domestic Heat Pump is ideal for residential applications depending on space and usage.

Domestic systems are for household use, while commercial systems handle large-scale, continuous demand.

Yes, while heat pumps have a higher upfront investment compared to conventional geysers, the running cost is significantly lower

• Up to 70–75% electricity savings
• Lower monthly energy bills
• Long-term durability

The typical payback period is between 2 to 4 years, depending on:
• Usage (residential vs commercial)
• Electricity tariff
• System size
